Size/尺寸 | 1/2" NPS TO 2" NPS |
Class/压力等级 | 3000LB, 6000LB, (STD, SCH80/XS, SCH160) |
Type/连接形式 | Buttweld/对焊、Plain/平端、Threaded/螺纹 |
Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering |
Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工 |
Manufacturing Standards/制造标准 |
ASTM A 182F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L | |

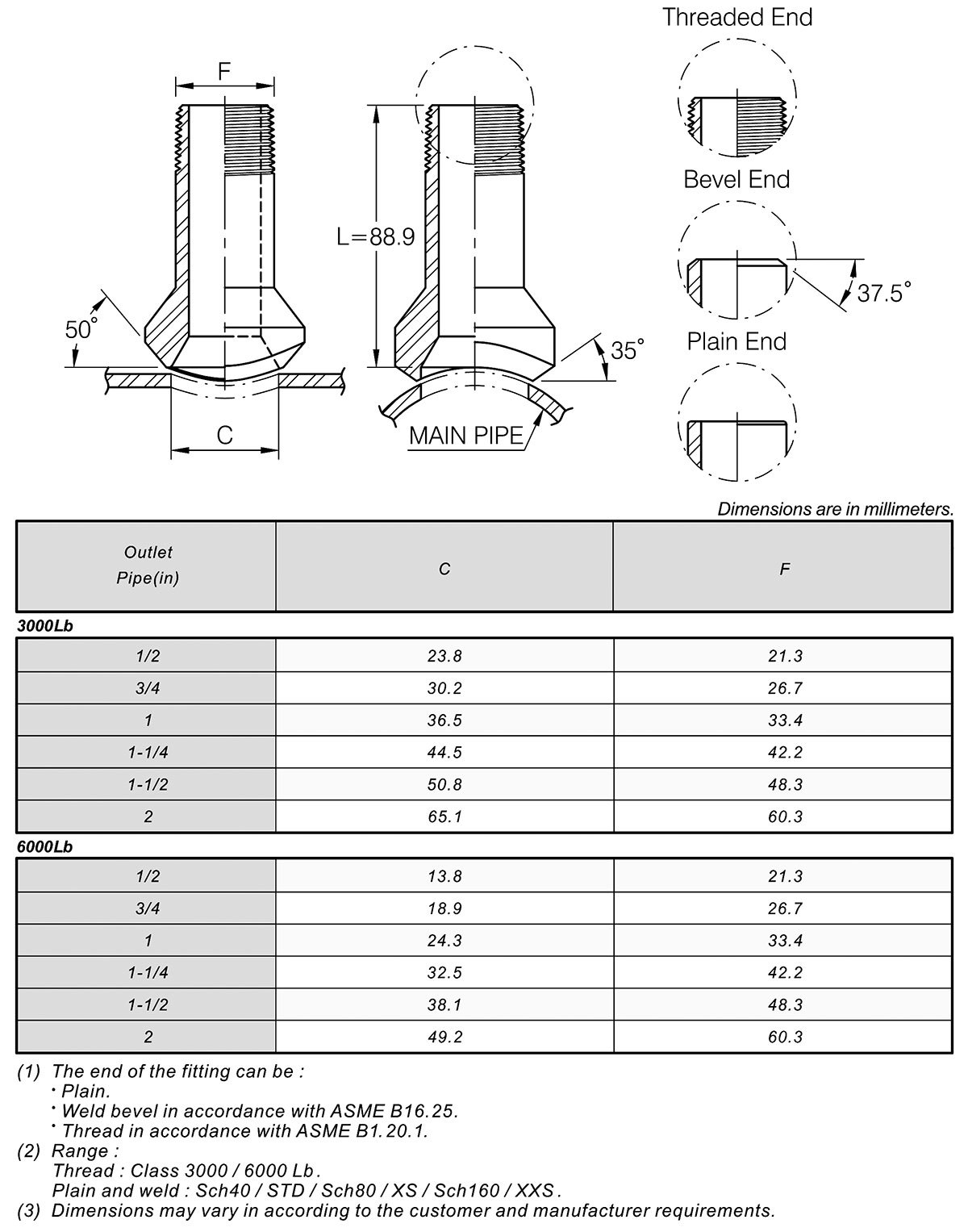

Outlet Pipe | C | F | |
3000lb | 6000lb | ||
1/2" | 23.8 | 13.8 | 21.3 |
3/4" | 30.2 | 18.9 | 26.7 |
1" | 36.5 | 24.3 | 33.4 |
1-1/4" | 44.5 | 32.5 | 42.2 |
1-1/2" | 50.8 | 38.1 | 48.3 |
2" | 65.1 | 49.2 | 60.3 |
