弯头管座 | Elbolet

Elbolet Specification:

Size/尺寸	1/2" NPS TO 4" NPS
Class/压力等级	3000LB, 6000LB (SCH80/XS,SCH160)
Type/连接形式	Buttweld/对焊、Socketweld/承插焊、Threaded/螺纹
Surface Treatment/表面处理	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering
Materal/材质	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Manufacturing process/制造工艺	Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工
Manufacturing Standards/制造标准	MSS SP-97

Elbolet Material Grades:

Stainless Steel/不锈钢	ASTM A 182F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L
Duplex & Super Duplex Steel/双相钢	ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel/碳钢	ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel/合金钢	ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91
Copper Alloy Steel/铜合金	Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy/镍合金	ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Elbolet Dimesions:

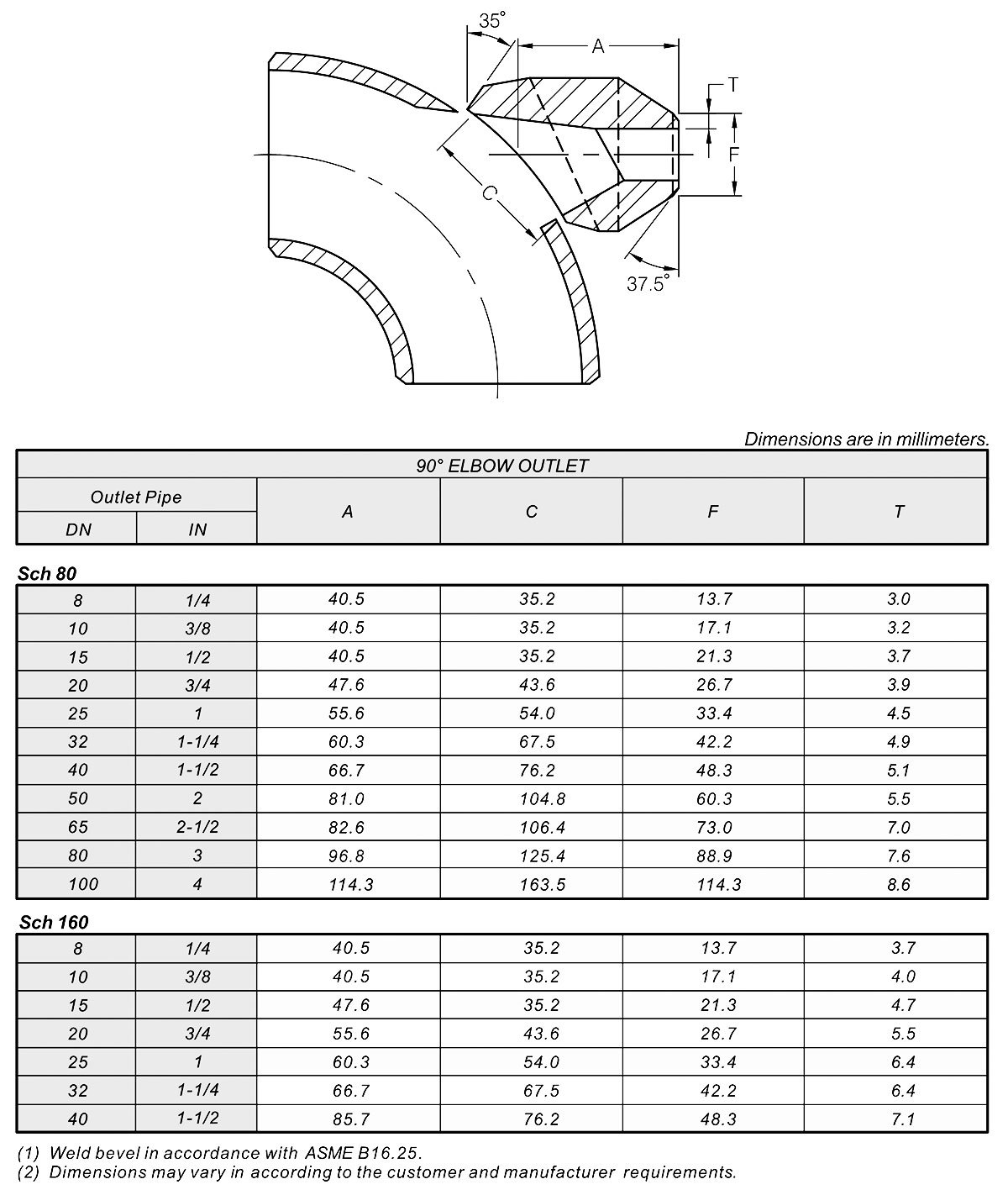

Elbolet Dimesions Table :

对焊弯头管座（Buttweld Elbolet）	承插焊弯头管座（Socketweld Elbolet）

SCH80

Outlet Pipe		A	C	F	T
DN	Inch	A	C	F	T
8	1/4"	40.5	35.2	13.7	3.0
10	3/8"	40.5	35.2	17.1	3.2
15	1/2"	40.5	35.2	21.3	3.7
20	3/4"	47.6	43.6	26.7	3.9
25	1"	55.6	54.0	33.4	4.5
32	1-1/4"	60.3	67.5	42.2	4.9
40	1-1/2"	66.7	76.2	48.3	5.1
50	2"	81.0	104.8	60.3	5.5
65	2-1/2"	82.6	106.4	73.0	7.0
80	3"	96.8	125.4	88.9	7.6
100	4"	114.3	163.5	114.3	8.6

SCH160

Outlet Pipe		A	C	F	T
DN	Inch	A	C	F	T
8	1/4"	40.5	34.9	13.7	3.7
10	3/8"	40.5	34.9	17.1	4.0
15	1/2"	47.6	34.9	21.3	4.7
20	3/4"	55.6	43.6	26.7	5.5
25	1"	60.3	54.0	33.4	6.4
32	1-1/4"	66.7	67.5	42.2	6.4
40	1-1/2"	85.7	76.2	48.3	7.1

(1) Dimensions in Millimeters.
(2) Dimensions refer to ANSI B16.11
(3) Dimensions may vary according to the customer's and manufacturer's requirement.
Dimensional tolerance of MSS-SP97
