.jpg) |
| Size/尺寸 | 1/8″~4″ (DN6~DN100) |
| Class/压力等级 | 3000 LBS, 6000 LBS, 9000 LBS |
| Type/连接形式 | Sockeweld,承插焊 |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering 热浸镀锌、环氧树脂和FBE图层、电抛光、喷砂、发黑等。 |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 | MSS SP-83 |
| Stainless Steel/不锈钢 | ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L |
| Duplex & Super Duplex Steel/双相钢 | ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. |
| Carbon Steel/碳钢 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel/合金钢 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
| Copper Alloy Steel/铜合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy/镍合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
 |
 |
| 承插焊活接头 | 不锈钢承插焊活接头（304/316L/S31803/S32750） |
 |
 |
| 一端承插焊、一端外牙活接头 | 一端对焊、一端外牙活接头 |
 |
 |
| 不锈钢对焊活接头 | 对焊活接头 |
 |
| Socket Weld Pressure Class | Pipe Schedule |
| Class 3000 | S80/XH |
| Class 6000 | S160 |
| Class 9000 | XXH |

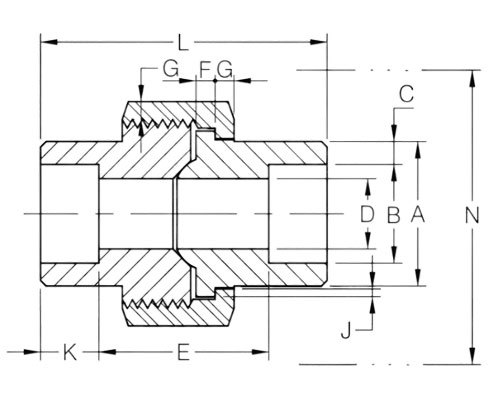

| Nom Pipe Size |
Pipe End (Min.) |
Socket Bore Dia. |
Socket Wall (Min.) |
Water Way Bore |
Laying Length |
Male Flange (Min.) |
Nut (Min.) |
Threads Per 25.4mm |
Bearing (Min.) |
Depth of Socket (Min.) |
Length Assem. Nom. |
Clear Assem. Nut |
| A | B | C | D | E | F | G | H | J | K | L | N | |
| 1/8" | 21.8 | 11.18 10.67 |
3.18 | 7.59 6.07 |
22.4 19.1 |
3.18 | 3.18 | 16 | 1.24 | 9.7 | 41.4 | 50.8 |
| 1/4" | 21.8 | 14.61 14.10 |
3.30 | 10.01 8.48 |
22.4 19.1 |
3.18 | 3.18 | 16 | 1.24 | 9.7 | 41.4 | 50.8 |
| 3/8" | 25.9 | 18.03 17.53 |
3.51 | 13.28 11.76 |
26.9 20.6 |
3.43 | 3.43 | 14 | 1.37 | 9.7 | 46.0 | 55.9 |
| 1/2" | 31.2 | 22.23 21.73 |
4.09 | 16.56 15.04 |
26.9 20.6 |
3.68 | 3.68 | 14 | 1.50 | 9.7 | 49.0 | 58.4 |
| 3/4" | 37.1 | 27.56 27.05 |
4.27 | 21.69 20.17 |
31.8 25.4 |
4.06 | 4.06 | 11 | 1.68 | 12.7 | 56.9 | 66.0 |
| 1" | 45.5 | 34.29 33.78 |
4.98 | 27.41 25.88 |
34.3 26.2 |
4.57 | 4.45 | 11 | 1.85 | 12.7 | 62.0 | 78.7 |
| 1-1/4" | 54.9 | 43.05 42.55 |
5.28 | 35.81 34.29 |
40.6 32.5 |
5.33 | 5.21 | 11 | 2.13 | 12.7 | 71.1 | 94.0 |
| 1-1/2" | 61.5 | 49.15 48.64 |
5.54 | 41.66 40.13 |
42.2 34.0 |
5.84 | 5.59 | 10 | 2.31 | 12.7 | 76.5 | 111.8 |
| 2" | 75.2 | 61.62 61.11 |
6.05 | 53.26 51.74 |
45.5 37.3 |
6.60 | 6.35 | 10 | 2.69 | 15.7 | 86.1 | 132.1 |
| 2-1/2" | 91.7 | 74.45 73.81 |
7.67 | 64.24 61.19 |
61.7 52.1 |
7.49 | 7.11 | 8 | 3.07 | 15.7 | 102.4 | 149.9 |
| 3" | 109.2 | 90.42 89.79 |
8.31 | 79.45 76.40 |
63.8 53.6 |
8.26 | 8.00 | 8 | 3.53 | 15.7 | 109.0 | 175.3 |
