| Size/尺寸 | 1/8″~4″ (DN6~DN100) |
| Class/压力等级 | 3000 LBS, 6000 LBS, 9000 LBS |
| Type/连接形式 | Sockeweld,承插焊 |
| Surface Treatment/表面处理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering 热浸镀锌、环氧树脂和FBE图层、电抛光、喷砂、发黑等。 |
| Materal/材质 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Manufacturing process/制造工艺 | Cutting, Heat treatment, Forging, Machining 锯切、热处理、模锻、机加工 |
| Manufacturing Standards/制造标准 | ASME 16.11, GB/T14383-2018，BS-3799 |
| Stainless Steel/不锈钢 | ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L |
| Duplex & Super Duplex Steel/双相钢 | ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. |
| Carbon Steel/碳钢 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel/合金钢 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
| Copper Alloy Steel/铜合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Nickel Alloy/镍合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
 |
 |

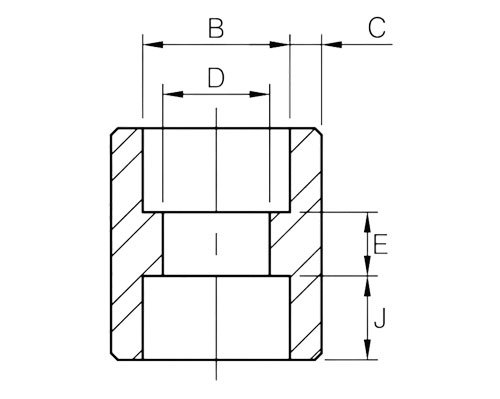

| 双头承插管箍（Socket Weld Coupling） | 承插焊半管箍（Socket Weld Half Coupling） |
 |
 |
| Socket Weld Pressure Class | Pipe Schedule |
| Class 3000 | S80/XH |
| Class 6000 | S160 |
| Class 9000 | XXH |
| DN | Nom. Pipe Size |
Socket Bore Dia. B |
Bore Dia.Of Fitting D |
Socket Wall Thickness(2) C |
Laying Lengths | Depth of Socket Min. J |
End Wall Thickness Min. K |
||||||||||
| Coupling E |
Half Coupling F |
||||||||||||||||
| Class Designation | |||||||||||||||||
| Class Designation | 3000 | 6000 | 9000 | Class Designation | |||||||||||||
| 3000 | 6000 | 9000 | Ave. | Min. | Ave. | Min. | Ave. | Min. | 3000 | 6000 | 9000 | ||||||
| 6 | 1/8" | 10.8 | 6.9 | 4.0 | --- | 3.18 | 3.18 | 3.96 | 3.43 | --- | --- | 6.5 | 16.0 | 9.5 | 4.8 | 6.4 | --- |
| 8 | 1/4" | 14.2 | 9.3 | 6.4 | --- | 3.78 | 3.30 | 4.60 | 4.01 | --- | --- | 6.5 | 16.0 | 9.5 | 4.8 | 6.4 | --- |
| 10 | 3/8" | 17.6 | 12.6 | 9.2 | --- | 4.01 | 3.50 | 5.03 | 4.37 | --- | --- | 6.5 | 17.5 | 9.5 | 4.8 | 6.4 | --- |
| 15 | 1/2" | 21.8 | 15.8 | 11.8 | 6.4 | 4.67 | 4.09 | 5.97 | 5.18 | 9.35 | 8.18 | 9.5 | 22.5 | 9.5 | 6.4 | 7.9 | 11.2 |
| 20 | 3/4" | 27.2 | 21.0 | 15.6 | 11.1 | 4.90 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 9.5 | 24.0 | 12.5 | 6.4 | 7.9 | 12.7 |
| 25 | 1" | 33.9 | 26.7 | 20.7 | 15.2 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 | 12.5 | 28.5 | 12.5 | 9.6 | 11.2 | 14.2 |
| 32 | 1-1/4" | 42.7 | 35.1 | 29.5 | 22.8 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 | 12.5 | 30.0 | 12.5 | 9.6 | 11.2 | 14.2 |
| 40 | 1-1/2" | 48.8 | 40.9 | 34.0 | 28.0 | 6.35 | 5.54 | 8.92 | 7.80 | 12.70 | 11.12 | 12.5 | 32.0 | 12.5 | 11.2 | 12.7 | 15.7 |
| 50 | 2" | 61.2 | 52.5 | 42.9 | 38.2 | 6.93 | 6.04 | 10.92 | 9.50 | 13.84 | 12.12 | 19.0 | 41.0 | 16.0 | 12.7 | 15.7 | 19.0 |
| 65 | 2-1/2" | 73.9 | 62.7 | --- | --- | 8.76 | 7.67 | --- | --- | --- | --- | 19.0 | 43.0 | 16.0 | 15.7 | 19.0 | --- |
| 80 | 3" | 89.8 | 78.0 | --- | --- | 9.52 | 8.30 | --- | --- | --- | --- | 19.0 | 44.5 | 16.0 | 19.0 | 22.4 | --- |
| 100 | 4" | 115.2 | 102.3 | --- | --- | 10.69 | 9.35 | --- | --- | --- | --- | 19.0 | 48.0 | 19.0 | 22.4 | 28.4 | --- |
